- Radiopaque catheter
- Superior drainage due to large oval holes
- Strong but gentle pigtail shape to maintain the catheter in place
- Superior resistance against encrustation
- High biocompatibility
- Significantly reduced friction due to hydrophilic-coated

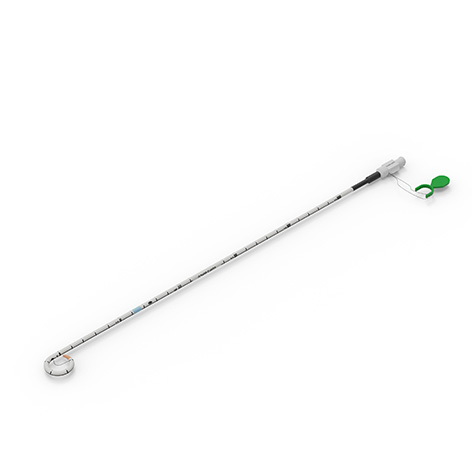

This catheter enables both internal and external biliary drainage in patients with biliary obstruction. The pigtail loop is designed for secure placement within the duodenum, while the side holes facilitate effective bile drainage across strictured segments of the bile duct. A hydrophilic coating on the distal 10 cm of the catheter facilitates smooth insertion and accurate positioning.
MODEL:Internal-External Biliary Drainage Set
Ordering Information
| Internal-External Biliary Drainage Set | |||||||
|---|---|---|---|---|---|---|---|
| Code | Size (Fr) | Total Length of Side Holes |
Distance from Marker to the Last Side Hole |
Side Holes Spacing (cm) |
No. Side Holes |
Length (cm) |
QTY/Box |
| RI-0302-0800 | 8 | 10 | 1.6 | 1.6 | 6 | 44 | 10 |
| RI-0302-1000 | 10 | 10 | 1.6 | 1.6 | 6 | 44 | 10 |
| RI-0302-1200 | 12 | 10 | 1.6 | 1.6 | 6 | 44 | 10 |
| CR-0302-1400 | 14 | 10 | 1.6 | 1.6 | 6 | 44 | 10 |
Accessories
– Dilators
– J-Tip Super Stiff PTFE Coated Guidewire (0.035*100)
– Echogenic Tip Metal Cannula & Trocar Needle
– Echogenic Tip Chiba Needle
– Urine Bag & Urine Bag Line
– 3-way Stopcock – Scalpel
– Flexible Cannula – Retention Disc
