Two Stage Venous Cannula

Two-Stage-Venous-Cannulae

Venous cannula is designed for cannulation of the right atrium and inferior vena cava (IVC) with one cannula with minimal penetration into the surgical site. The narrow end of the two-stage cannula is threaded into the IVC and receives blood from it. The wider proximal portion of the cannula has side holes designed to rest within the right atrium, thus receiving blood from the superior IVC and coronary sinus

MODELS:

1. Two Stage Venous Cannulae
Wirewound Integrated with Obturator

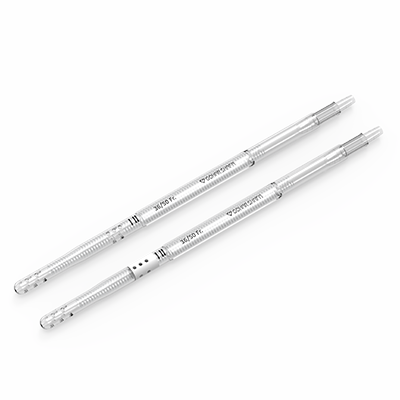

2. Low Profile Two Stage Venous
Cannulae Wirewound with Obturator (Oval)

Category:

  • Flexible lumen
  • Smooth surface and one piece body
  • Wire-reinforced kink and Twist resistant lumen
  • Depth marking for better placement
  • Enlarged holes for optimal blood drainage
  • Superior flow rate due to larger end hole and thin wall
  • Made of Phthalates Free medical grade PVC

Ordering Information

TWO STAGE VENOUS CANNULA
Code Size (Fr.) Length (cm)
(without connector)		 Length (cm) (with connector) Connector
(in)		 Oval part Length (cm) (If applicable) QTY/Box
HS-0301-2836 28-36 38.5 43 1/2 14 10
HS-0301-2937 29-37 38.5 43 1/2 14 10
HS-0301-3240 32-40 38.5 43 1/2 14 10
HS-0301-3446 34-46 38.5 43 1/2 14 10
HS-0301-3646 36-46 38.5 43 1/2 14 10
HS-0301-3650 36-50 38.5 43 1/2 14 10
